Contactile - Robotic Gripper Accessory

During my internship at Contactile, I designed an device that controls and supplies power to a robotic gripper. The purpose of this device was to enable mobile demonstration of the gipper (for trade shows and conferences).

For the electronics, I designed this PCB in KiCad:

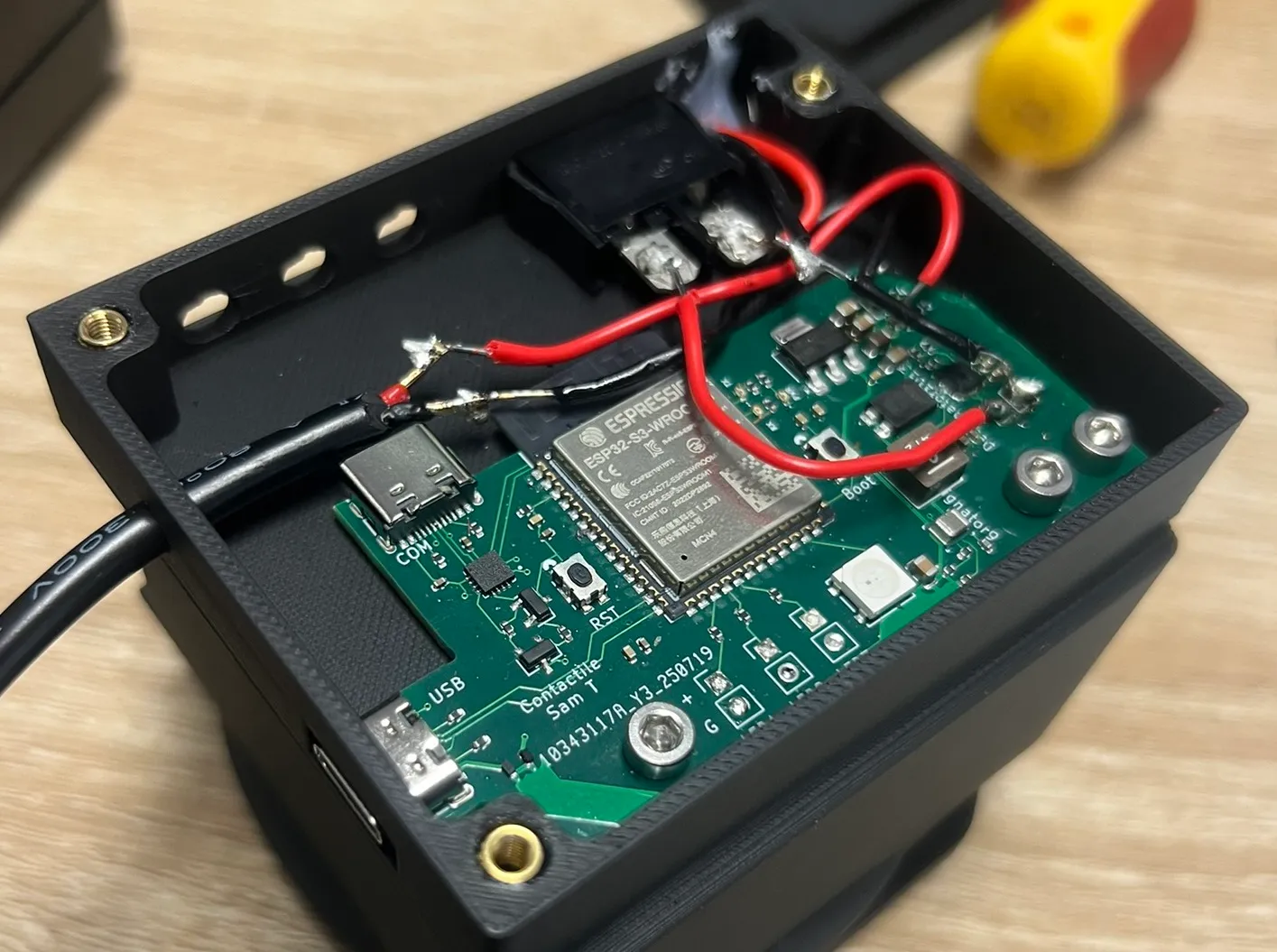

Figure: The PCB (4 Layer).

The PCB was manufactured and assembled by JLCPCB, and the first iteration worked as expected. The MCU is an ESP32-S3 WROOM and ESP-IDF was used to program the USB and BLE peripherals.

The power supply consists of eight (high current) AA rechargeable batteries. A boost converter was designed to step up the ~12V supply voltage to 24V for the gripper and a buck converter was used to step voltage down to 5V for the digital circuit.

I used Autodesk Fusion to design the mechancial housing and a Bambu 3D printer for prototyping.

During the project, I used oscilloscopes, logic analysers, multimeters, and current probes for electrical prototyping and troubleshooting. I also used soldering equipment for surface-mount and through-hole connections.
